NC Servo Straightener feeder for brake pads stamping

  • NC Servo Straightener feeder for brake pads stamping
  • NC Servo Straightener feeder for brake pads stamping
  • NC Servo Straightener feeder for brake pads stamping
  • NC Servo Straightener feeder for brake pads stamping

NC Servo Straightener feeder for brake pads stamping

    Payment Type: L/C,T/T
    Terms of Trade: FOB,CFR,CIF
    Min. Order: 1 Bag/Bags
    Delivery Time: 15 Days
    Packaging: Woodencase
    Productivity: 100 sets
    Brand: Mayflay
    Transportation: Ocean,Land,Air
    Place of Origin: China
    Supply Ability: 100 sets
    Certificate: CE
    HS Code: 84283920.00
    Port: Shenzhen

Basic Info

Model No.: MFL4-H

Product Description

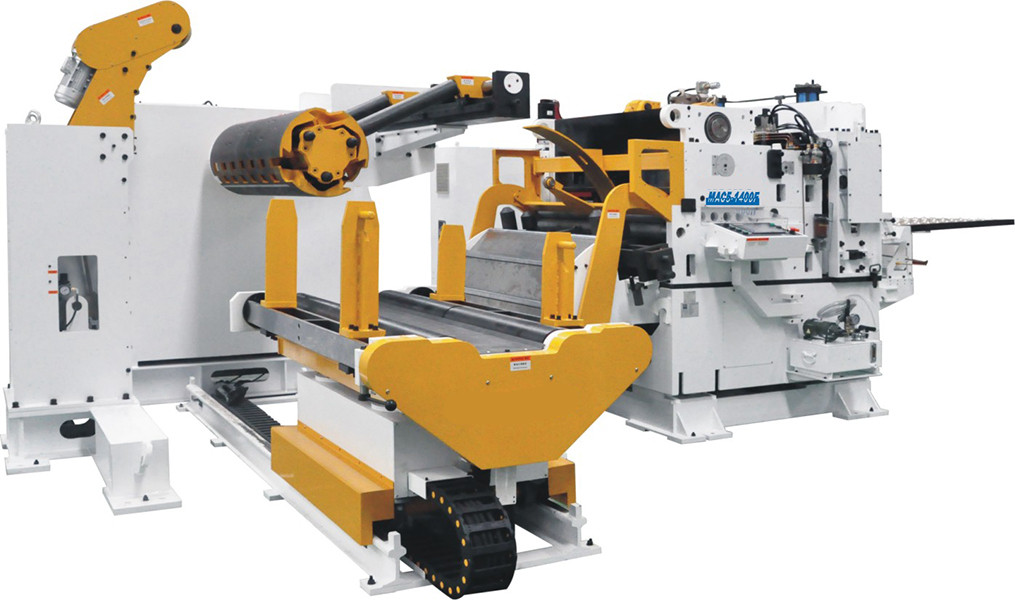

NC Servo Straightener feeder combines a feeder/straightener with a powered decoiler. The slack loop is developed below the spindle, reducing floor space significantly compared to conventional slack loops. We offer numerous optional features to suit specific application requirements, including peelers, hold down arms, or pilot releases. This system is designed for 0.6-6.0mm thickness steels with higher tensile strength materials needing to be run in a compact setting. By developing the loop below the spindle and incorporating a feeder with a straightener, significant floor space is conserved. Pilot release for both feed and straightener rolls is available, making this an ideal design for progressive die applications.

Thick steels with higher tensile strength require special care in the coil handling process. Safety, longevity and ergonomics become more important than feeding dynamics. Additionally, the machinery framework must withstand especially high torque and clock-spring forces.

NC Servo Straightener feeder range comprehends standard straighteners for eliminating the coil bow as well as levellers for higher straightening requirement and precision straighteners with convex straightening rolls for highest straightening quality requirement. The maximum available standard working width, depending on type of straighener, is about 1800 mm.

The Compact Press Feeding Line realizes the combination of unwinding, straightening and feeding for heavy materials in a most efficient fashion.


NC Servo Straightener feeder
Model MFL4-600H MFL4-800H MFL4-1100H MFL4-1300H MFL4-1400H MFL4-1600H MFL4-1800H
Material Width(mm) 70-600 70-800 70-1100 70-1300 70-1400 70-1600 70-1800
Material Thickness(mm) 0.6-6.0 0.6-6.0 0.6-6.0
Max.Coil Weight(kg) 5000 5000 7000 10000 10000 10000 10000
Max.Coil O.D.(mm) 1400 1400 1400
Coil l.D.(mm) 508 508 508
Feed Length(mm) ~500* ~500* ~500*
Max.Line Speed(m/min) 16-24 16-24 16-24
Straightener Roll (pcs) upper6/lower5 upper6/lower5 upper6/lower5
Feed Roll (pcs) 1 2 2
Main Motor AC15 AC15 AC15.0 AC22.0 AC22.0 AC22.0 AC22.0
Mandrel Expansion Hydraulic Hydraulic Hydraulic
Reel Motor(kw) 2.2 2.2 3.7 7.5 7.5 7.5 7.5
Power(V) 3phase 220V/380V/50HZ
Operating Air(Mpa) 0.49


1)The above figures are the material having yield strength σs=600N/mm².

2)Specifications are subject to change for improvement without notice.


The Main Detailed Parts of Decoiler Straightener Feeder 3 In 1 machine as below:

Press Feed Stamping Line1. Coil Car---Hydraulic power, wear-resisting surface
2. Decoiler Mandrel ---Hydraulic Expansion, Delta Inverter
3. Pressing Arm---Coil well-knit, no disperse
4. Limiting Arm--- Locating coil, avoid coil shuffling
5. Support Arm---Auxiliary support coil
6. Coil Inlet---With supporting swing arm
7. Control Cabinet---Weinview Touchscreen
8. Straightening Part---GCr15 steel straightener rolls
9. Handwheel --- Straightening value adjustment
10. Shearing Unit---Hydraulic shear (Optional)
11. Lubrication Unit---Automatic control, 20L (Optional)

12. Outlet Bracket --- Adjustable length

Automobile stamping, appliances manufacturing, computer and electronic componets, hardware and metal parts etc industry.


Coil feeding line for MAC3

Automotive Parts: Bracket, Damper, Barke Pad, Tie Bar, Electric Accessory, Shell Parts Of Printers, Computer Frame,Slide Rail of Car Seat, Splash Shield of car body and etc

Auto stamping parts

NC Servo Straightener feederis working in our customer's factory.

NC Servo Straightener feeder is for making the bracket coil sheet feed line.

This machine is working in one of our customer's factory, they produce U type parts with NC Servo Straightener feeder.

With the Yaskawa Servo Systems and Mitsubishi PLC control, the feeding line can reach ±0.15mm feeding accuray.

Punching Press 3 In 1 Feeder Hydraulic Rack Leveling Nc Servo Roll Feed Equipment MAC4

Decoiler Straightener Feeder 3 In 1

Mayflay Machinery(huizhou) Co.,LTD


Mayflay company are a high quality manufacturer of all types of Coil Handling Equipment and Press feeding equipment in China. Manufacturers of separate Decoilers, Straighteners and Servo feeders, and can provide an excellent range of combo 2 in 1 decoilers and Straighteners, and also the very popular Compact Press Feed lines which will reduce floor space and dramatically improve threading time on heavy duty coils.

Mayflay company has been learning Japanese technology and using high standards of principle in the parts selection, assembly process and spare parts, focus on designing and providing innovative, cost-effective Coil Processing Solutions and Automatic Stamping Line solutions. Mayflay develops with cutting-edge technology and considerate service. Mayflay offers one stop solution to solve the problem of feeding coil strips into the press so well, and increase production so substantially. Today, Mayflay is a dedicated enterprise featuring facility manufacturing with good reputation, professional skills, modern management, extensive sales network, and ingenious marketing.

Mayflay is not the best in the world, and the price is not the cheapest. But we can provide excellent products to reach your requirements and help you obtaining the greatest economic benefits.
